k8s 进阶之开发 admission webhook
admission webhook 是对 api server 的扩展，简单来说就是在 api server 认证客户端请求阶段有 2 个 webhook 可以来定制请求的验证逻辑和对请求进行修改。
简介
官网文档上的解释：动态准入控制 | Kubernetes

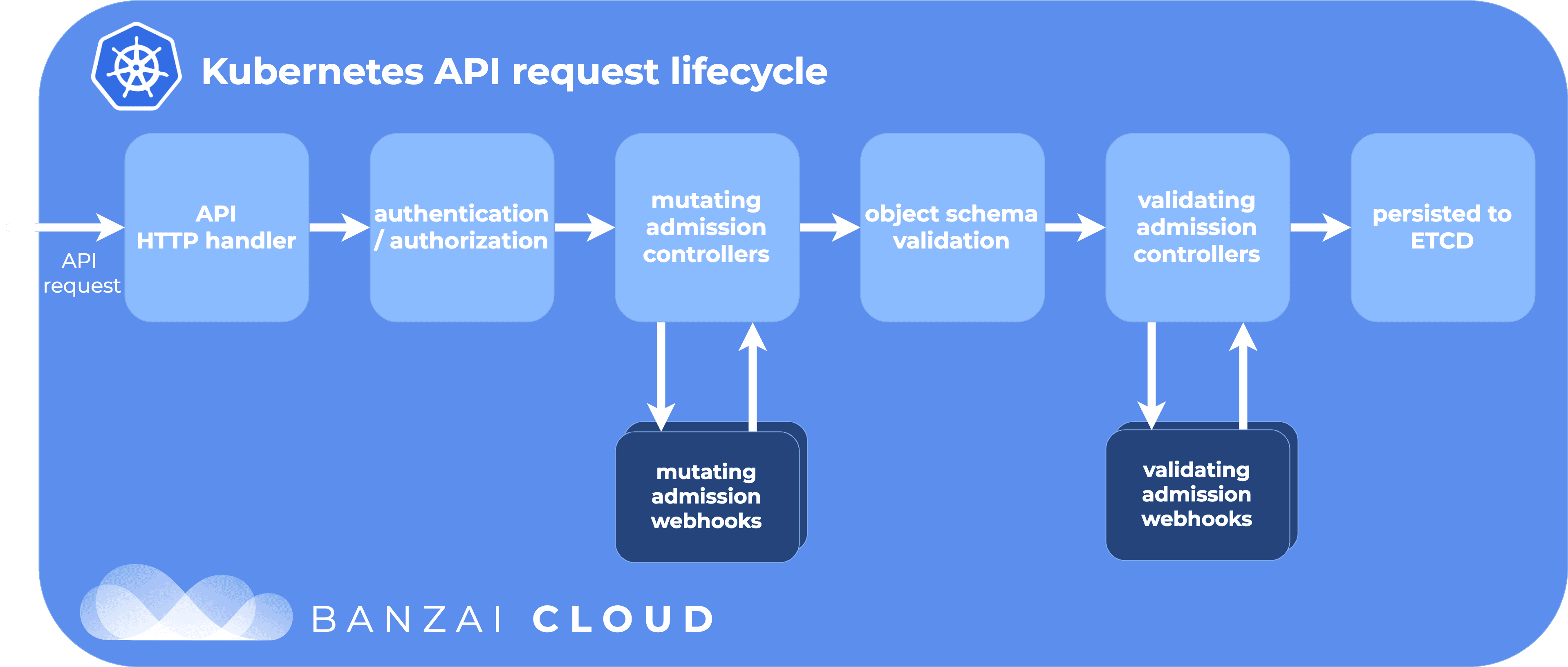

了解这个知识点之前需要知道关于 kube api server 对请求的处理流程，大致如下图所示：
图片出处：Outshift | In-depth introduction to Kubernetes admission webhooks (cisco.com)
如上图所示，有 2 个 webhook 的地方可以定制一些我们自己想要的逻辑，比如利用 validating webhook 确保 tenant 只有在其 namespace 匹配的情况下才能创建资源，而利用 mutating webhook 则可以在用户创建资源时修改其 api 请求，一个很典型的使用案例是 istio 通过 mutating webhook 来向用户的 pod 里自动注入 envoy 容器。
和 operator 一样，这 2 个是属于概念性质的东西，实际上干活的还是 pods，在 pods 上启动服务器，api server 与这个服务器 https 通信来实现 validate 和 mutate 功能，其基本使用方法就是部署一个 deployment 到集群中。
接下来用 admission webhook 来实践一些简单的功能：
- 限制 svc 的端口，如果 name 不是 https 则不可以使用 443 端口
- 给 svc 自动加一个标签
enabled， true 或者 false，表示启用或禁用
开发之前首先要确认集群有没有开启相关的功能：
# kubectl api-versions
......
admissionregistration.k8s.io/v1 # 有这个就可以了
......
没有的话需要在 api server 的启动参数里指定 enable-admission-plugins 参数。
项目的基本框架
首先来创建新项目：
mkdir my-webhook && cd my-webhook
go mod init my-webhook
touch main.go
然后在 main.go 中添加 api handler ，把大致的 https 请求处理框架给起来：
package main
import (
"crypto/tls"
"encoding/json"
"flag"
"fmt"
"io/ioutil"
"net/http"
// 项目根目录下创建webhooks, 用于存存放不同resource的valiate，mutate逻辑
"my-webhook/webhooks"
"github.com/golang/glog"
"k8s.io/api/admission/v1beta1"
"k8s.io/apimachinery/pkg/runtime"
"k8s.io/apimachinery/pkg/runtime/serializer"
metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)
type serverParams struct {
port int
certFile string
keyFile string
}
type WebhookServer struct {
server *http.Server
}
var (
runtimeScheme = runtime.NewScheme()
codecs = serializer.NewCodecFactory(runtimeScheme)
deserializer = codecs.UniversalDeserializer()
)
func (ws *WebhookServer) validate(w http.ResponseWriter, r *http.Request) {
var body []byte
if r.Body != nil {
if data, err := ioutil.ReadAll(r.Body); err == nil {
body = data
}
}
if len(body) == 0 {
http.Error(w, "empty body", http.StatusBadRequest)
return
}
contentType := r.Header.Get("Content-Type")
if contentType != "application/json" {
http.Error(w, "invalid Content-Type, expect `application/json`", http.StatusUnsupportedMediaType)
return
}
ar := &v1beta1.AdmissionReview{}
var admissionResponse *v1beta1.AdmissionResponse
if _, _, err := deserializer.Decode(body, nil, ar); err != nil {
glog.Errorf("Can't decode body: %v", err)
admissionResponse = &v1beta1.AdmissionResponse{
Result: &metav1.Status{
Message: err.Error(),
},
}
} else {
admissionResponse = webhooks.Validate(ar) // validation
}
ar.Response = admissionResponse
resp, _ := json.Marshal(ar)
w.Write(resp)
}
func (ws *WebhookServer) mutate(w http.ResponseWriter, r *http.Request) {
var body []byte
if r.Body != nil {
if data, err := ioutil.ReadAll(r.Body); err == nil {
body = data
}
}
if len(body) == 0 {
http.Error(w, "empty body", http.StatusBadRequest)
return
}
contentType := r.Header.Get("Content-Type")
if contentType != "application/json" {
http.Error(w, "invalid Content-Type, expect `application/json`", http.StatusUnsupportedMediaType)
return
}
ar := &v1beta1.AdmissionReview{}
var admissionResponse *v1beta1.AdmissionResponse
if _, _, err := deserializer.Decode(body, nil, ar); err != nil {
glog.Errorf("Can't decode body: %v", err)
admissionResponse = &v1beta1.AdmissionResponse{
Result: &metav1.Status{
Message: err.Error(),
},
}
} else {
admissionResponse = webhooks.Mutate(ar) // mutate
}
ar.Response = admissionResponse
resp, _ := json.Marshal(ar)
w.Write(resp)
}
func main() {
var parameters serverParams
// 指定webhook server的端口，和使用的证书的位置
flag.IntVar(¶meters.port, "port", 443, "Webhook server port.")
flag.StringVar(¶meters.certFile, "tlsCertFile", "/etc/webhook/certs/cert.pem", "File containing the x509 Certificate for HTTPS.")
flag.StringVar(¶meters.keyFile, "tlsKeyFile", "/etc/webhook/certs/key.pem", "File containing the x509 private key to --tlsCertFile.")
flag.Parse()
pair, err := tls.LoadX509KeyPair(parameters.certFile, parameters.keyFile)
if err != nil {
glog.Errorf("Failed to load key pair: %v", err)
}
whsvr := &WebhookServer{
server: &http.Server{
Addr: fmt.Sprintf(":%v", parameters.port),
TLSConfig: &tls.Config{Certificates: []tls.Certificate{pair}},
},
}
// define http server and server handler
mux := http.NewServeMux()
mux.HandleFunc("/validate", whsvr.validate)
mux.HandleFunc("/mutate", whsvr.mutate)
mux.HandleFunc("/healthcheck", http.HandlerFunc(func(w http.ResponseWriter, r *http.Request) {
w.Write([]byte("running"))
}))
whsvr.server.Handler = mux
// start webhook server in new routine
if err := whsvr.server.ListenAndServeTLS("", ""); err != nil {
glog.Errorf("Failed to listen and serve webhook server: %v", err)
}
}
把 validate 和 mutate 相关的逻辑都放在 webhooks 目录下，在 webhooks 目录下创建 handle.go, 用 Validate 和 Mutate 方法来统一处理相应的逻辑。
// webhooks/handle.go
package webhooks
import (
"encoding/json"
"fmt"
"strings"
"github.com/golang/glog"
"k8s.io/api/admission/v1beta1"
apiv1 "k8s.io/api/core/v1"
metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)
type patchOperation struct {
Op string `json:"op"`
Path string `json:"path"`
Value interface{} `json:"value,omitempty"`
}
func Validate(ar *v1beta1.AdmissionReview) *v1beta1.AdmissionResponse {
req := ar.Request
var resp *v1beta1.AdmissionResponse
switch req.Kind.Kind {
case "Service":
switch req.Kind.Group {
case "":
s := &apiv1.Service{}
if err := json.Unmarshal(req.Object.Raw, s); err != nil {
glog.Errorf("Could not unmarshal raw object %v", err)
return UnmarshalError(err)
}
sv := NewServiceValidator(s)
resp = sv.validate()
}
// case "Pod": ....
}
if resp == nil {
resp = &v1beta1.AdmissionResponse{
Allowed: true,
}
}
return resp
}
func Mutate(ar *v1beta1.AdmissionReview) *v1beta1.AdmissionResponse {
req := ar.Request
resp := &v1beta1.AdmissionResponse{}
switch req.Kind.Kind {
case "Service":
sv, err := NewServiceManager(req)
if err != nil {
return UnmarshalError(err)
}
resp = sv.Mutate()
}
return resp
}
func MakeAdmissionResponse(allowed bool, reason metav1.StatusReason) *v1beta1.AdmissionResponse {
resp := new(v1beta1.AdmissionResponse)
resp.Allowed = allowed
resp.Result = &metav1.Status{
Reason: reason,
}
return resp
}
func UnmarshalError(err error) *v1beta1.AdmissionResponse {
errMsg := fmt.Sprintf("Cannot unmarshal raw objects from API server, %v", err)
if strings.Contains(err.Error(), "AnalysisMessageBase_Level") {
errMsg = "Cannot unmarshal the object due to Istio API issue. If you are creating a virtual service, please check if you provide the correct gateway in the manifest."
}
return MakeAdmissionResponse(false, metav1.StatusReason(errMsg))
}
现在基本的框架都搭好了。
开发 validate 和 mutate 逻辑
接下来在 webhooks 目录下实现相应的资源的 validate 和 mutate 逻辑就可以了， 这里我们要验证 service, 所以新建 service.go
// webhooks/service.go
package webhooks
import (
"encoding/json"
"fmt"
"strings"
"github.com/golang/glog"
"k8s.io/api/admission/v1beta1"
apiv1 "k8s.io/api/core/v1"
metav1 "k8s.io/apimachinery/pkg/apis/meta/v1"
)
const (
SVC_NS_NAME_LENGTH = 56
)
type ServiceValidator struct {
Service *apiv1.Service
}
type ServiceManager struct {
service *apiv1.Service
user string
namespace string
}
func NewServiceManager(req *v1beta1.AdmissionRequest) (*ServiceManager, error) {
sv := &ServiceManager{
service: &apiv1.Service{},
user: req.UserInfo.Username,
namespace: req.Namespace,
}
if err := json.Unmarshal(req.Object.Raw, sv.service); err != nil {
return nil, err
}
return sv, nil
}
func NewServiceValidator(s *apiv1.Service) *ServiceValidator {
return &ServiceValidator{
Service: s,
}
}
func (sv *ServiceValidator) hasProtocolPrefix(name string) bool {
i := strings.IndexByte(name, '-')
if i >= 0 {
name = name[:i]
}
return true
}
func (sv *ServiceValidator) validatePorts() *v1beta1.AdmissionResponse {
for _, sp := range sv.Service.Spec.Ports {
switch sp.Protocol {
case apiv1.ProtocolUDP: // skip udp validate
break
}
if sp.Port == 443 {
if !strings.HasPrefix(sp.Name, "https") {
return MakeAdmissionResponse(false,
"You cannot configure a non-HTTPs service with 443 port")
}
}
}
return nil
}
func (sv *ServiceValidator) validate() *v1beta1.AdmissionResponse {
if r := sv.validateLength(); r != nil {
return r
}
if r := sv.validatePorts(); r != nil {
return r
}
return nil
}
func makePatchOperation(verb, path string) *patchOperation {
return &patchOperation{
Op: verb,
Path: path,
}
}
func (sv *ServiceManager) injectRequiredLabels() []*patchOperation {
patch := []*patchOperation{}
labels := sv.service.ObjectMeta.Labels
existLabels := make(map[string]string)
for k, v := range labels {
existLabels[k] = v
}
existLabels["enabled"] = "yes" // add enabled label and set yes as default value
labelPath := makePatchOperation("add", "/metadata/labels")
labelPath.Value = existLabels
patch = append(patch, labelPath)
return patch
}
func (sv *ServiceManager) Mutate() *v1beta1.AdmissionResponse {
resp := &v1beta1.AdmissionResponse{
Allowed: true,
}
operations := []*patchOperation{}
operations = append(operations, sv.injectRequiredLabels()...)
finalPatch, _ := json.Marshal(operations)
glog.Infof("Adding patch %s for service %s in namespace %s", string(finalPatch), sv.service.ObjectMeta.Name, sv.namespace)
resp.Patch = finalPatch
resp.PatchType = func() *v1beta1.PatchType {
pt := v1beta1.PatchTypeJSONPatch
return &pt
}()
return resp
}
这样代码基本就写完了，剩下的是 webook 的部署
push 镜像到仓库
首先来准备 Dockerfile:
FROM golang:1.23 AS build_base
RUN mkdir -p /opt/src/my-webhook
WORKDIR /opt/src/my-webhook
COPY go.mod .
COPY go.sum .
RUN go mod download
# go binary build
FROM build_base AS binary_builder
WORKDIR /opt/src/my-webhook
COPY . .
RUN CGO_ENABLED=0 GOOS=linux go build -o /go/bin/my-webhook main.go
# final image, direct copy binary build result to a simple base image
FROM alpine
COPY --from=binary_builder /go/bin/my-webhook /bin/
# 使用了ENTRYPOINT就不能像CMD那样运行容器时自定义执行的命令了
ENTRYPOINT [ "my-webhook" ]
build 好后把镜像给传到 dockerhub 上：
docker login -u f91org # login dockerhub
docker build -t f91org/simple-k8s-webhook .
docker push f91org/simple-k8s-webhook
准备 https 通信所需的证书
webook 和 api server 是 https 通信，所以需要我们准备 webook 端的私钥以及签发它的证书，这里做法有 2 种：
- 用 k8s 集群的 CA，通过
CertificateSigningRequest和kubectl certificate approve来签发证书。 - 使用
openssl命令来生成自签发的 CA，区别于 k8s 集群的 CA，这种情况下需要在WebhookConfiguration里来配置自签发 CA 的证书。这里用这种方法生成 CA，用这个 CA 去签发证书。
# 生成CA的证书和私钥
openssl genrsa -out ca.key 2048
openssl req -x509 -new -nodes -key ca.key -subj "/CN=ca" -days 3650 -out ca.crt
# 再生成一个私钥和以及它的证书签名请求（CSR）
openssl genrsa -out webhook.key 2048
openssl req -new -key webhook.key -subj "/CN=my-webhook.default.svc" \
-reqexts v3_req \
-config <(cat <<EOF
[req]
distinguished_name = req_distinguished_name
req_extensions = v3_req
[req_distinguished_name]
[v3_req]
subjectAltName = @alt_names
[alt_names]
DNS.1 = my-webhook.default.svc
DNS.2 = my-webhook.default.svc.cluster.local
DNS.3 = *.default.svc
EOF
) -out webhook.csr
# 使用CA的key和证书签署CSR `webhook.csr`，得到由CA签署的和私钥对应的证书
openssl x509 -req -in webhook.csr -CA ca.crt -CAkey ca.key -CAcreateserial \
-out webhook.crt -days 365 -extensions v3_req \
-extfile <(cat <<EOF
[req]
distinguished_name = req_distinguished_name
[v3_req]
subjectAltName = @alt_names
[alt_names]
DNS.1 = my-webhook.default.svc
DNS.2 = my-webhook.default.svc.cluster.local
EOF
)
后面在 yaml 文件中会用到 ca.crt, wehbook.key 和 webhook.crt
部署 yaml 文件
service, deployment, secret, sa, clusterrole, rolebinding 全套走起，以及 adminssionwebhook 需要用到的 2 个特殊的配置 ValidatingWebhookConfiguration，MutatingWebhookConfiguration
apiVersion: v1
kind: Service
metadata:
name: my-webhook
labels:
app: my-webhook
spec:
ports:
- port: 443
targetPort: 443
name: https-my-webhook
selector:
app: my-webhook
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: my-webhook
labels:
app: my-webhook
spec:
replicas: 1
selector:
matchLabels:
app: my-webhook
template:
metadata:
labels:
app: my-webhook
spec:
automountServiceAccountToken: true
containers:
- name: my-webhook
image: f91org/simple-k8s-webhook
imagePullPolicy: IfNotPresent
args:
- -tlsCertFile=/etc/webhook/certs/cert.pem
- -tlsKeyFile=/etc/webhook/certs/key.pem
- -alsologtostderr
- -v=4
- 2>&1
volumeMounts:
- name: webhook-certs
mountPath: /etc/webhook/certs
readOnly: true
livenessProbe:
httpGet:
path: /healthcheck
scheme: HTTPS
port: 443
initialDelaySeconds: 3
periodSeconds: 3
readinessProbe:
httpGet:
path: /healthcheck
scheme: HTTPS
port: 443
initialDelaySeconds: 3
periodSeconds: 3
volumes:
- name: webhook-certs
secret:
secretName: webhook-certs
将证书和私钥转换为 secret 所需要的 Base64 编码格式放在 secret 里：
apiVersion: v1
data:
cert.pem: LS0tLS1CRUdJTiBDRVJU... # cat webhook.crt | base64
key.pem: LS0tLS1CRUdJTiBQUklW... # cat webhook.key | base64
kind: Secret
metadata:
name: webhook-certs
权限相关的配置，role -> rolebinding <- sa，这里为了方便直接给所有权限：
# CluserRole
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: cluster-admin
rules:
- apiGroups: ['*']
resources: ['*']
verbs: ['*']
---
# CluserRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: system:default
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: default
namespace: default
# sa 用默认的就可以
最后是 ValidatingWebhookConfiguration 和 MutatingWebhookConfiguration，主要配置要对哪些资源进行验证和修改，这里需要配置 CA 的 cert，还是一样的，将之前生成的 CA 的证书编码为 base64 来放到配置里：
apiVersion: admissionregistration.k8s.io/v1
kind: MutatingWebhookConfiguration
metadata:
name: my-webhook
webhooks:
- name: com.f91og.webhook # 命名有要求为至少有3个点
sideEffects: NoneOnDryRun
failurePolicy: Fail
objectSelector:
matchExpressions:
- key: "app"
values:
- "my-webhook"
operator: NotIn
admissionReviewVersions: ["v1"]
clientConfig:
service:
name: my-webhook
path: "/mutate"
caBundle: LS0tLS1CRUdJTiBDRVJU... # cat ca.crt | base64
rules:
- operations: ["CREATE", "UPDATE"]
apiGroups: [""]
apiVersions: ["v1"]
resources: ["services", "pods"]
---
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
name: my-webhook
webhooks:
- name: com.f91og.webhook
rules:
- apiGroups: ["apps", ""]
apiVersions: ["v1"]
operations: ["CREATE", "UPDATE"]
resources: ["services"]
sideEffects: None
failurePolicy: Fail
admissionReviewVersions: ["v1"]
objectSelector:
matchExpressions:
- key: "app"
values:
- "my-webhook"
operator: NotIn
clientConfig:
caBundle: LS0tLS1CRUdJTiBDRVJU... # cat ca.crt | base64
service:
name: my-webhook
path: /validate
这样就部署完成了，最后是验证，尝试 deploy 了一个 service，在 webhook 的 pod 的日志里发现了：
service.go:124] Adding patch [{"op":"add","path":"/metadata/labels","value":{"enabled":"yes"}}] for service test-svc in namespace default
证明 webhook 已将开始工作了。
用 helm 来生成和管理证书和密钥
全套流程部署下来后，有一个麻烦的地方是证书这种敏感的数据不应该明文放在 yaml 里，这个时候可以用 helm 的模版以及内置的自签发证书生成函数 genSelfSignedCert 来动态渲染这个证书数据，这样就可以把 webhook 相关的 yaml 文件放心的存放在远程仓库了，大概就是这样：
{{- $cn := printf "%s.%s.svc" .Values.service .Values.namespace }}
{{- $altName1 := printf "%s" .Values.service }}
{{- $altName2 := printf "%s.%s" .Values.service .Values.namespace }}
{{- $altName3 := printf "%s.%s.svc" .Values.service .Values.namespace }}
{{- $ca := genSelfSignedCert $cn nil (list $altName1 $altName2 $altName3) 5114 }}
apiVersion: v1
data:
cert.pem: {{ ternary (b64enc (trim $ca.Cert)) (b64enc (trim .Values.webhook.crtPEM)) (empty .Values.webhook.crtPEM) }}
key.pem: {{ ternary (b64enc (trim $ca.Key)) (b64enc (trim .Values.webhook.keyPEM)) (empty .Values.webhook.keyPEM) }}
kind: Secret
metadata:
namespace: {{ .Values.namespace }}
creationTimestamp: null
name: {{ .Values.secret }}
